How to connect a Category 7 network cable to a fiber optic panel

To connect a Cat7 network cable to a fiber optic panel, you typically use a fiber-to-Ethernet media converter or patch panel setup to bridge copper and fiber networks.Step 1: Understand the Components

• Cat7 Cable: Shielded twisted pair cable supporting up to 10 Gbps over 100 meters, ideal for high-performance Ethernet connections .

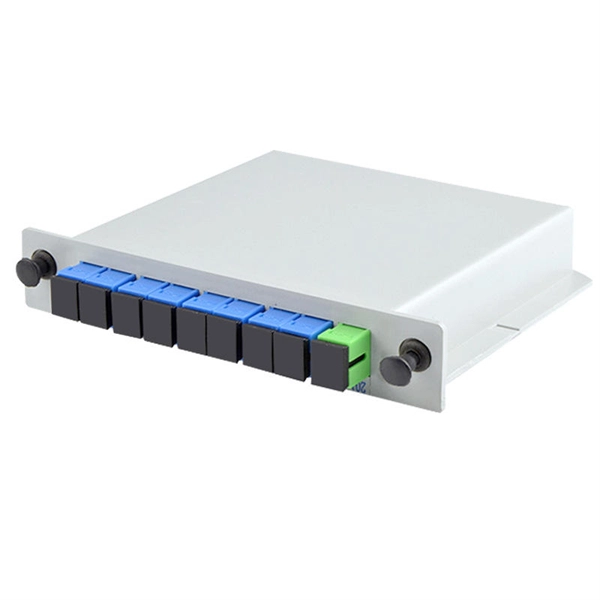

• Fiber Optic Panel: Centralized panel for managing fiber connections, supporting single-mode or multi-mode fibers with LC, SC, or ST connectors .
• Media Converter: Device that converts electrical Ethernet signals from Cat7 to optical signals for fiber transmission and vice versa .

Step 2: Prepare the Cat7 Cable

1. Measure and cut the Cat7 cable to the required length.
2. Terminate the cable with an RJ45 connector using a shielded connector kit to maintain EMI protection.
3. Test the cable with a network tester to ensure proper wiring and signal integrity .

Step 3: Prepare the Fiber Optic Panel

1. Identify the fiber type (single-mode or multi-mode) and connector type (LC, SC, ST) on the panel .
2. Clean the fiber connectors using specialized cleaning tools to remove dust or debris.
3. Inspect the fiber for any damage or kinks that could impair performance.

Step 4: Connect Using a Media Converter

1. Plug the Cat7 RJ45 connector into the Ethernet port of the media converter.
2. Connect the fiber optic cable to the corresponding port on the media converter, ensuring the connector type matches the panel port .
3. Power on the media converter and verify link lights to confirm connectivity.

Step 5: Patch Panel Integration (Optional)

• If using a structured cabling system, connect the fiber from the media converter to the fiber patch panel.
• Use patch cords to link the panel to switches or routers, maintaining organized cable management for scalability and maintenance .

Step 6: Test the Connection

• Use network testing tools to verify data transmission speed, signal integrity, and error rates.
• Ensure the Cat7-to-fiber link meets the required performance standards for your network environment . By following these steps, you can effectively integrate Cat7 Ethernet cabling with a fiber optic panel, ensuring high-speed, reliable, and scalable network performance. Proper preparation, cleaning, and testing are essential to maintain signal quality and prevent data loss.
